Model A370
High-Speed Plug-in Concrete Vibrator with Inner Hexagon Coupling
Product Description

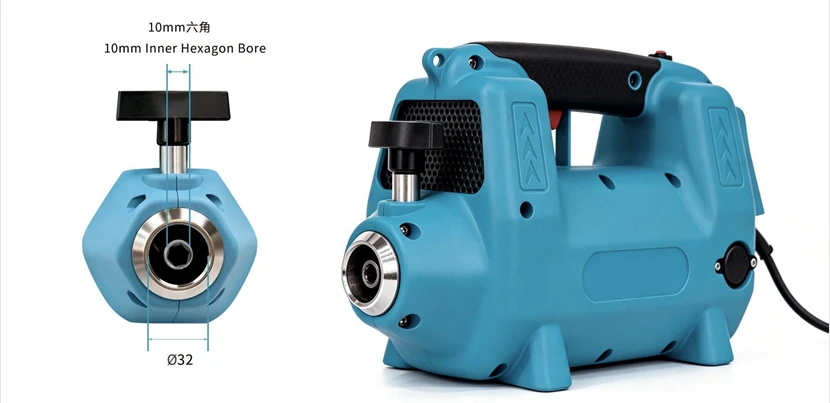

The Chaoou A370 High-Speed Plug-in Concrete Vibrator has a rated power output of 1600 W and a rotational speed of 18000 r/min. It is compatible with 38# and 45# vibrator shafts and uses a 10 mm inner hexagon bore with a catalog-marked outer diameter of Ø32 mm.
Specification Highlights
- Rated power output: 1600W
- Rotational speed: 18000r/min
- Coupling dimensions: 10mm inner hexagon / Ø32mm
Technical Specifications
- Model
- A370
- Rated Voltage
- 100-250V
- Rated Frequency
- 50/60Hz
- Rotational Speed
- 18000r/min
- Motor Dimensions
- Ø54.5 95*78mm
- Rated Power Output
- 1600W
- Height of Stator and Rotor
- 68mm
- Compatible Shaft Range
- 38#; 45#
- Coupling Dimensions
- 10mm inner hexagon / Ø32mm
- Packing Dimension
- 36*63*24, 4PCS/CTN
Commercial Information
- OEM / ODM
- Available
- Product Customization
- Customization Available
- Customization MOQ
- 300 pcs
Applies only when product customization is requested; it is not the general minimum order quantity for standard orders.
